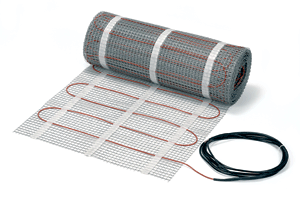

Danfoss LX Electric Radiant Heat Mats
Experience the comfort of toasty warm floors. Danfoss carries a fine line of radiant heat systems, including this LX Heating Mat. Danfoss LX floor heating mats add only 1/8” to the floor height, making it an optimal solution for renovations. It can even be applied directly to the surface of any old flooring.

System Components & Installation
Danfoss LX is a durable, high quality mat that can be installed under any flooring. Because the mat has a protective, waterproof, metallic shield, it is safe for use in both dry and wet environments, including tiled shower and bathroom floors. Danfoss LX is designed to produce 10 to 15 watts per square foot and is ideal for both residential and commercial projects, from small bathrooms to commercial office space.

Danfoss LX Thermostat

The Danfoss LX series electronic on/off thermostats are designed to control electric radiant heating systems for maximum comfort and minimum power consumption. The system temperature is controlled by an external or built-in sensor. The heat output is switched on or off with a difference of 0.7°F(0.4°C).

Technical Data

Mat Construction:
  • Strong, flexible thermoplastic polymer coated fiberglass.
  • Self-adhesive backing
  • One cold lead single point connection
Heating Cable Construction:
  1. PVDF120 outer sheath
  2. Aluminum screen
  3. FEP conductor insulation
  4. Twin copper, copper alloy or A1Si 304 conductors
  5. Tinned Cu screen conductor
  • Rated Voltage: 120V, 240V
  • Rated Temperature: 250°F (120°C)
  • Power: 9.3W/ft2, 100W/m2
Cold Lead Construction:
  • Twin stranded Cu conductors insulated by XLPE, Cu screen
  • PVC filler sheath and PVC outer sheath
